AVR6619KE

(Anti-Vandal Reader)

Description:

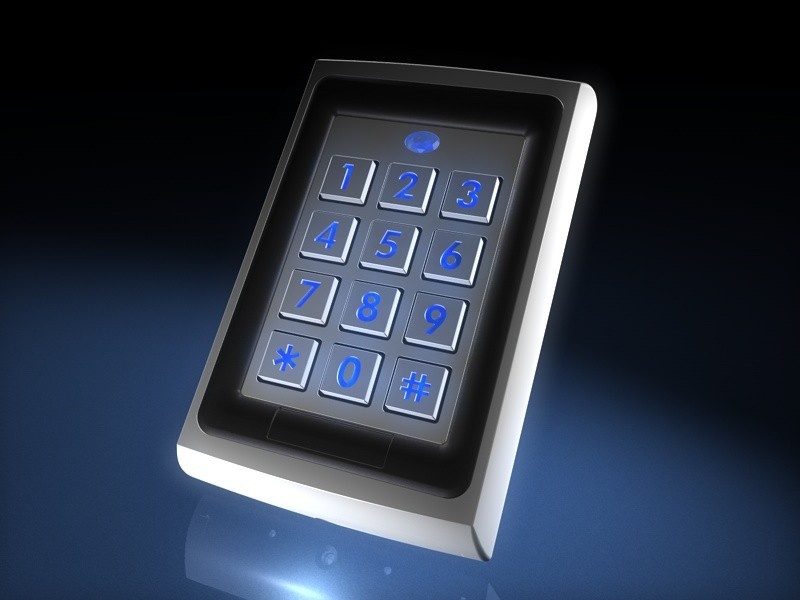

This superior quality backlit metal PIN and Proximity reader is rugged, weather-resistant and attractive in design. The product was designed to reduce stock levels. Blue backlit keys assist operation in low or no light conditions. With the internal sounder, AVR6619KE provides superior accessibility.

AVR6619KE can be easily disinfiected in areas where hygine is important, and has an expectionally long life due to no moving parts. The unit resists the elements such as glue, oil, rain, ice, snow. Ideal for hopsitals, industrial and commercial application.

This dual-application product has advanced reader features for wide compatibility with different controller types including multiple PIN & RFID card transmission formats, LED control and tamper detection.

Features:
Supports PIN + CARD credentials.
Smooth attractive design, with all-weather
Blue backlit and anti-vandal metal construction.
2 LED and integral sounder for programming and operation.
Optical tamper detection technology.
6-wire shielded interface cable.
8 programmable PIN transmission modes including options for key stream, binary, parity, and 3x4 matrix.
Supports Wiegand 26-Bit, or Clock & Data RFID card transmission formats.
Comes with a mounting and drilling label, security screw, and tool set to prevent unauthorized opening.
AVR6619KE is manufactured in SECUSYS’s ISO:9001 registered facility.

Specifications:
Maximum read range*: 80mm (3.15 in.)
Modulation: ASK at 125 kHz
Compatible cards: 26-Bit Wiegand EM compatible
Operating Voltage: 7-12VDC
Operating Current: ≤100mA
Standby Current:≤50mA
Working Temperature: -30°C to 65°C (-22°F to 150°F)
Operating Humidity: 0 to 95%
LED Control Input: Dry Contact, Normally Open
Buzzer Control Input: Dry Contact, Normally Open
Tamper Output: Open collector, active low 32mA max sink current. Optical Technology
Dimensions: 120mm L x 76mm W x 21mm D (4.72 in. x 3.00 in. x 0.83 in.)
Weight: 490 g (1.05 lbs)
